Safety Switch Installation Sydney

Safety switches are important because they act to prevent electrocution. It detects current leakage caused by faults in the electrical system and ‘trips’, cutting the power to the circuit and preventing external damage or hazards.

Surge Protection Devices (SPDs) are pieces of equipment that defend against voltage spikes caused by lightning, power outages, or switching. This helps protect appliances and systems from damage, lowers fire risks, and sustains the reliability of your power supply.

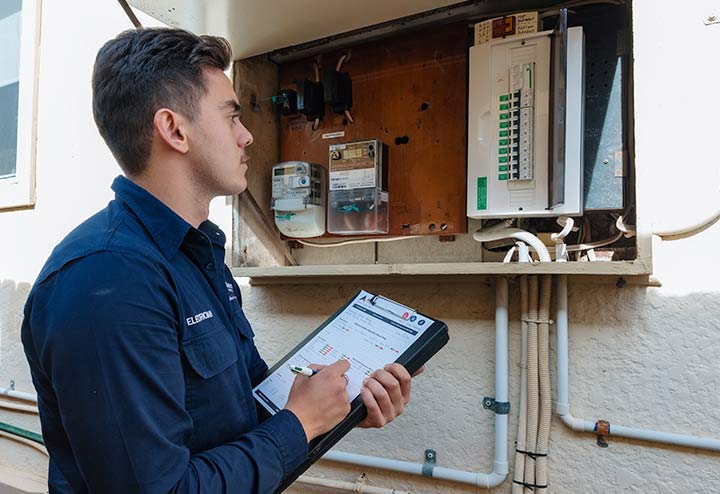

A full switchboard upgrade is necessary when:

• You have old, outdated, or dangerous hardware, like ceramic fuses, visible fuse wires, a lack of RCDs, or a meter panel containing asbestos.
• Can smell burning.
• Can see discolouration or scorch marks on equipment.
• The switchboard is warm or hot to the touch.
• There are repeated instances where circuit breakers or safety switches trip.
• You experience problems with lights or appliances working at the same time.

You have been given an electrical defect notice by Ausgrid or Endeavour Energy.

Common electrical safeguards in Sydney include:

• Safety switches (RCDs): Detect earth leakage and trip to prevent electrocution.
• RCBOs: Shares leakage detection with RCDs, but also detect overcurrent faults.
• Circuit breakers: Interrupt the power current to protect wires and circuits during an overload.
• Fuses: Older overcurrent protection devices that function similarly to circuit breakers, but are largely being replaced by them.
• Power point safety devices: Safety devices that protect power points, such as weatherproofing.

There are many benefits to hiring a professional safety switch service, including:

• Safety evaluation and expert inspection to diagnose what is required.
• Solutions tailored for you and your property.
• Fully insured professional installation with the correct accreditation and licensed electrician.
• Fully compliant practices in line with current Australian standards.

Yes, RCDs are mandatory in NSW for all new electrical systems, and are strongly recommended for older switchboards as well. For residential properties built before 1992, switchboards should be checked by a professional electrician to assess RCD installation against AS/NZS 3000:2018 standards. For commercial properties, RCDs are required for all high-risk working environments.

The length of time it takes to install a safety switch depends on the complexity of the job and the quality of circuitry already present. On average, safety switch installation should take 1-2 hours to complete, but it may take longer if there are complications, like:

• Inadequate space
• Incorrect labelling of wires and cables
• Presence of dangerous materials like lead or asbestos
• Poor quality existing wiring

While we recommend relying on our expert services for safety switch testing, it is possible to complete one yourself at home. Here are the steps to follow:

1. Alert your household that you will be conducting a safety switch test.

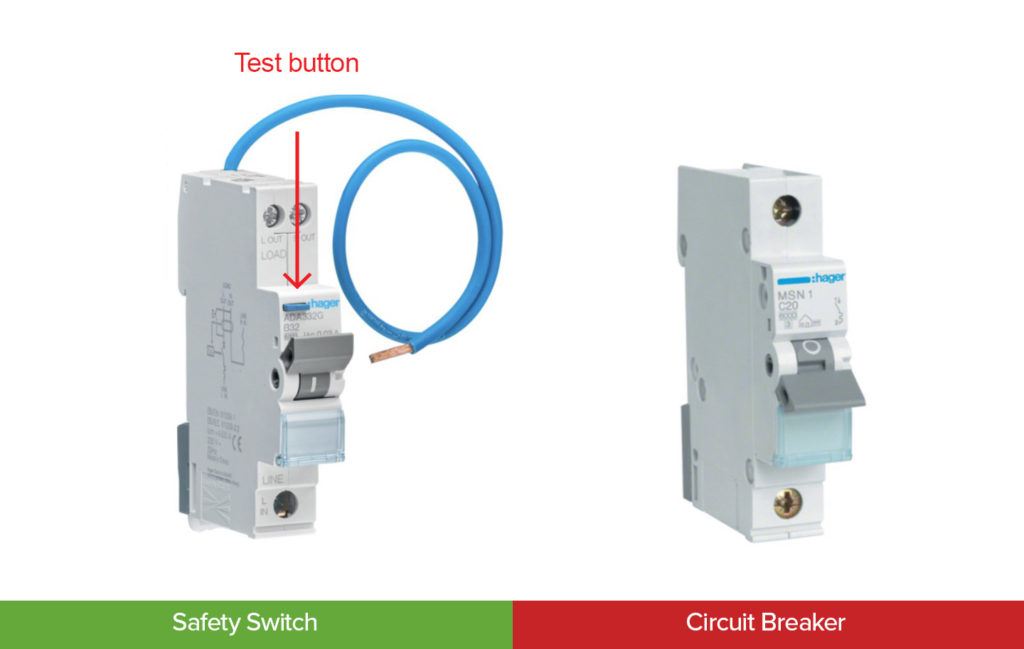

2. Locate and open your switchboard, then press the ‘T’ or ‘Test’ button on each safety switch. The power will be cut, and the switch should immediately flip to the ‘off’ position. There may be a clunking sound.
3. Verify that the appropriate lights, power points, and appliances inside your home have lost power.
4. If any of your appliances or lights haven’t lost power, your switch may have failed. To resolve this issue, contact a licensed electrician as soon as possible. Do the same if your safety switch doesn’t reset.
5. If your test is successful, set a reminder to check your safety switches again in three months.
