Bathroom Exhaust Fan Installation Sydney

Exhaust Fan Installations & Proper Ventilation

Small but mighty, exhaust fans are important for the health of your home and household. Without proper ventilation, mould, condensation, and deteriorating materials can lead to serious problems for you and your family. Paint peels, drywall and timber corrode, and insulation degrades, putting the structural integrity of your home at risk.

When humidity levels rise in areas like bathrooms, laundry rooms, and kitchens, condensation and moisture buildup cause mould to thrive. Mould, particularly Black Mould, poses serious health risks, including:

Respiratory issues
Headaches
Fatigue
Skin and eye irritation
Central nervous system damage

Having an exhaust fan installed in these high-humidity rooms is one of the simplest ways to combat damage to your home and health. They improve airflow and keep your home mould, mildew, and mite-free.

Electricians Sydney by Alliance offer a full house inspection to assist you in identifying the places for your new exhaust fan installation. We are also equipped to replace out-of-date or broken fans with high-performing upgrades.

Ceiling Exhaust

The most popular and known option

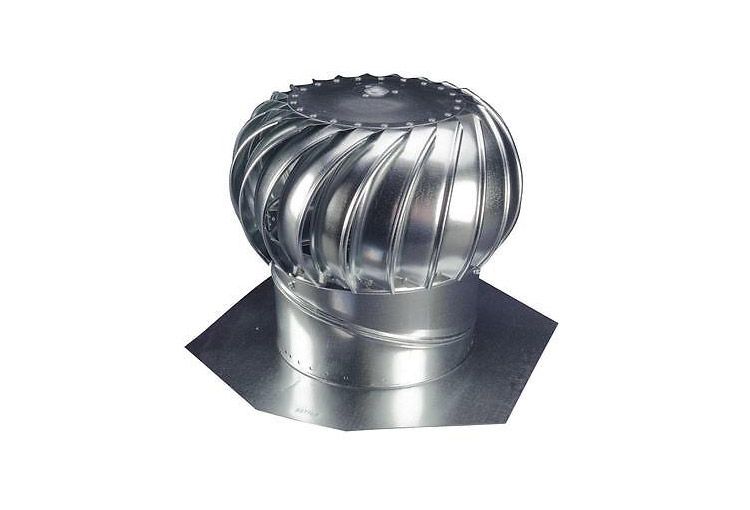

Roof Exhaust Ventilation

Option for limited roof cavity space + quieter option

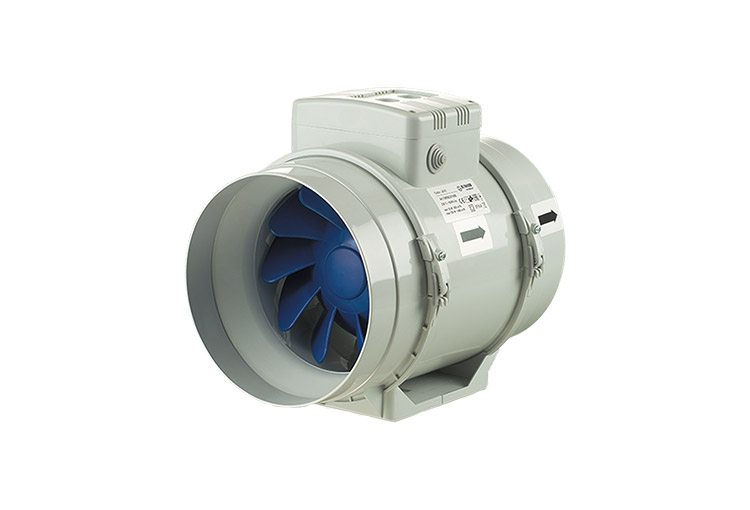

INLINE EXHAUST

Suitable for areas without roof space – installed within the ceiling cavity

Ceiling exhaust

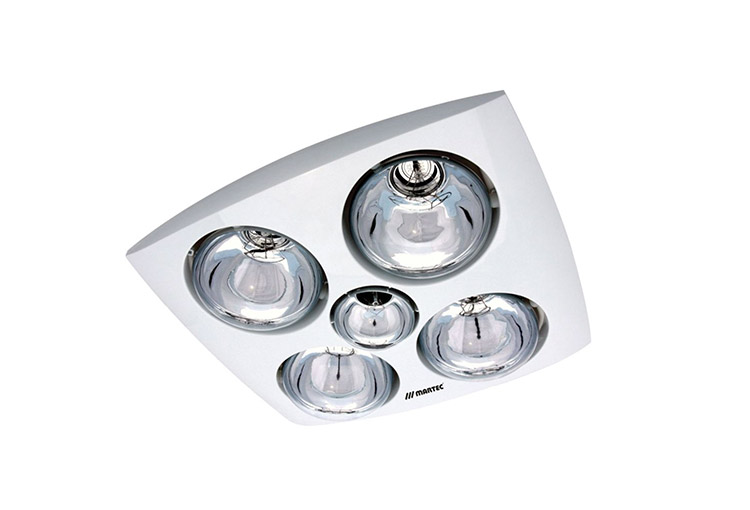

heat lamp

3 in 1 appliance (exhaust, heat & light)

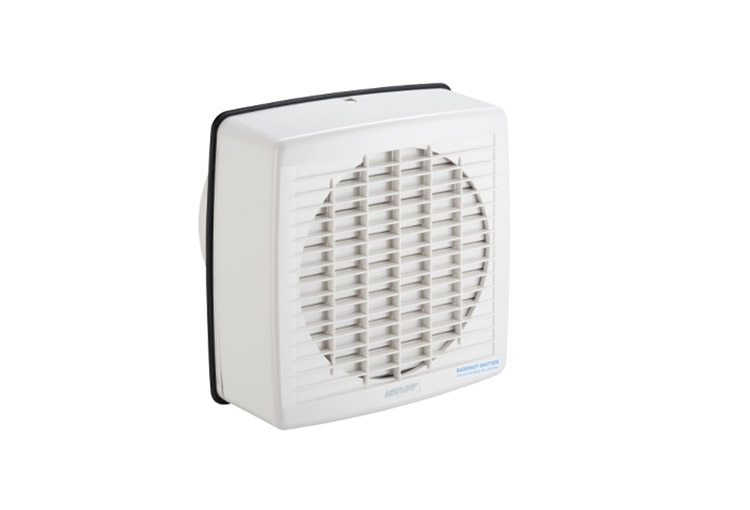

Wall & WINDOW

Blocked filter due to dirt, dust and harmful contaminates, causing blockages and unhealthy air.

Ducted vs. Unducted Exhaust Fans

When installing an exhaust fan in your home, you will need to decide between ducted and unducted exhaust fan units. Both have key features that are beneficial to different areas of the home.

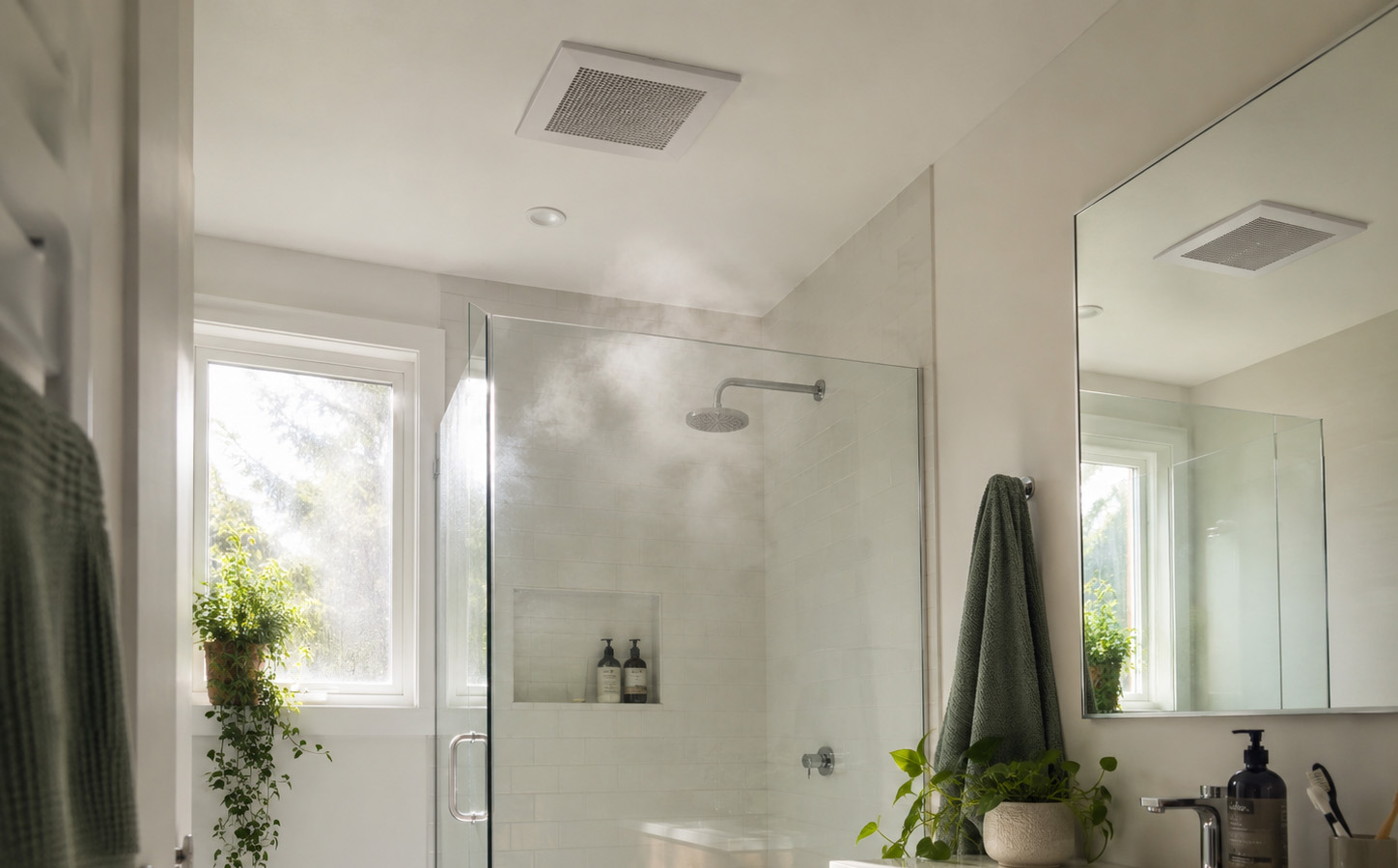

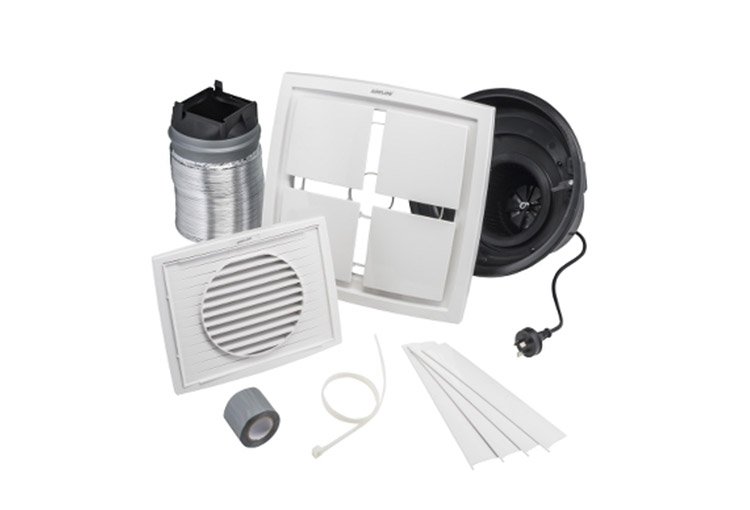

Ducted

Ducted exhaust fan units capture stale air and moisture from inside the room and push them through a duct to disperse outdoors. A roof cowl or eave vent is the key mechanism that allows this air to exit.

Ducted exhaust fans are most effective in rooms with high moisture content, like bathrooms, showers, and kitchens. This installation helps remove steam and cooking odours from the space, and reduces mould growth and physical damage.

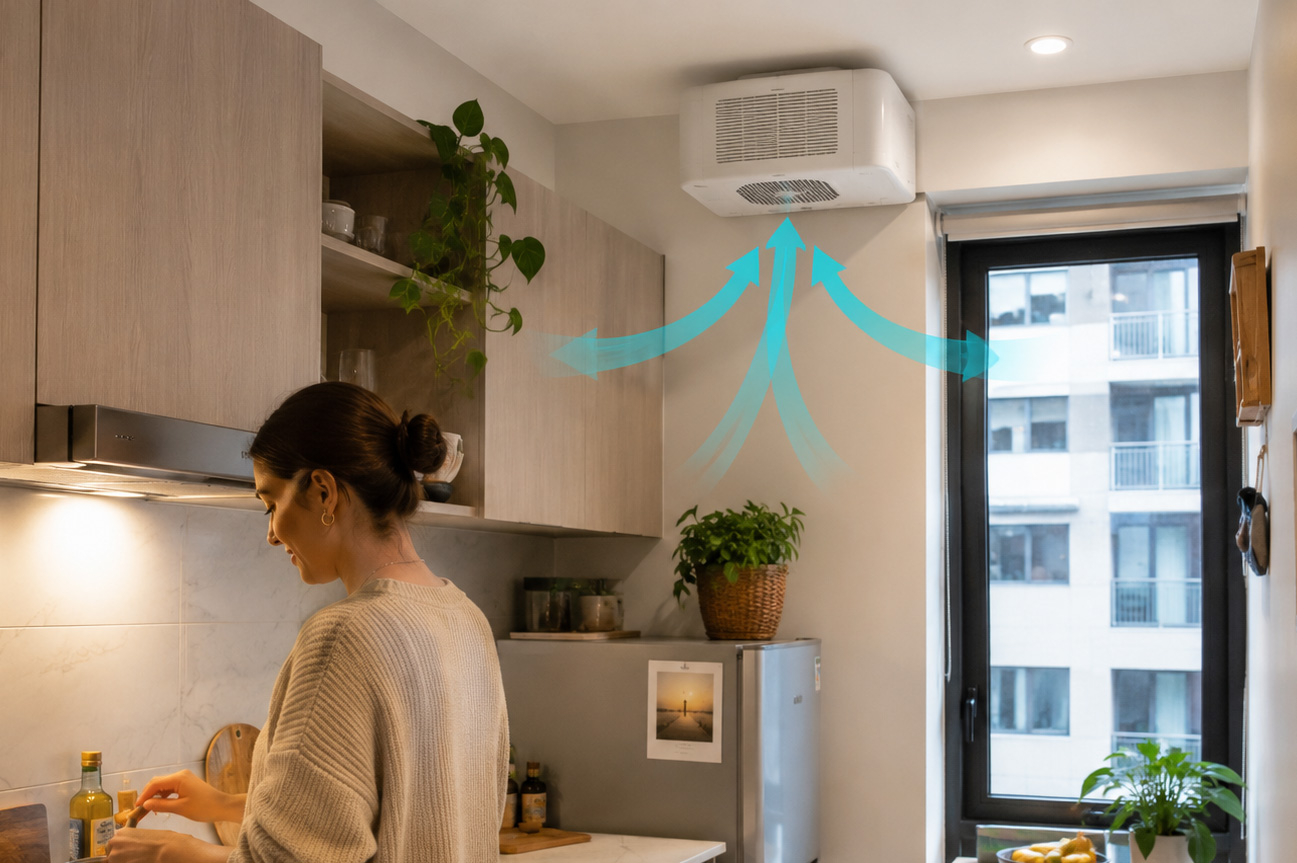

Unducted

Unducted, or non-ducted, exhaust fans are exactly what it sounds like. Instead of using a piping duct, the fan pulls the air from the room through a filter, which is then recirculated into the room. This filter traps odours, grease, and dust, preventing them from reentering the room.

Unducted units are best for small spaces where ductwork cannot be utilised. They are generally cheaper to install, but are not able to filter steam or moisture. These filters also need to be cleaned or replaced to remain effective.

Types of Exhaust Fans to Consider

Different types of exhaust fans will suit different types of uses in your home. The table below summarises each fan type to help you find the right fit.

Fan Type	Best For	Ducting	Noise	Pricing Range
Ceiling Mounted	Small to medium-sized bathrooms, and other high-humidity rooms	Recommended	Moderate	$50-$250
Inline Ducted	Kitchens, large bathrooms, laundries, especially those with dryers	Yes	Quiet	Fan Unit Only: $70-$250 Full Kit: $200-$450 Ultra Quiet Models: $300-$650+
Wall Mounted	Laundries and garages that have external walls	No	Moderate	$50-$250
Window Mounted	Kitchens or older homes with easy window access	No	High	$150-$550
3-in-1 (heat, light, ventilation)	Those looking for a single fitting with heating, lighting, and exhaust capabilities for their bathroom.	Recommended	Moderate to High, depending on the model	$150-$850

IXL Tastic: 3-in-1 Bathroom Exhaust Fans

IXL Tastic is a reliable Australian brand that offers a range of 3-in-1 bathroom exhaust fans. There are three key IXL 3-in-1 units: Original, Neo, and Eco. If you’re considering an IXL Tastic unit and are unsure which one to choose, the table below will help you make a well-informed decision.

	Best For	Heat Lamps	Lights	Extraction Rate	Warranty
Original	Small to medium-sized bathrooms, looking to prioritise heating	4 x 275W instant infrared heat lamps	8W LED centre light	283 m3/hr	5-year in-home warranty and 2-year replacement warranty on heat lamps
Neo	Small to medium-sized bathrooms, with less emphasis on heating and more emphasis on extraction rate	1 x 800W tungsten halogen Halo Heat lamp	3 x 7W Omni Lighting LED lamp	480 m³/hr	5-year in-home warranty and 2-year replacement warranty on Ventair In-line fan
Eco	Medium or family bathrooms wanting sustainable, energy-efficient extraction. 5-star energy-rated homes.	4 x 275W instant infra-red heat lamps	8W LED centre light	348m3/hr	5-year in-home warranty and 2-year replacement warranty on heat lamps

NCC Ventilation Requirements for Your Home

The National Construction Code requires all Australian homes to have adequate indoor air quality and to manage condensation within the property. Part 3.8.5 and Part 10.6 are key in outlining ventilation requirements for bathrooms, kitchens, and laundries. These requirements include:

Natural ventilation: All habitable rooms require 5% of the floor area or a mechanical ventilation system to be equal to the area of windows or other natural ventilation mechanisms.
Airflow rates in Litres per second (L/s):
- Bathrooms: 25 L/s
- Kitchens & Laundries: 40 L/s
Ducting to Outdoors: All exhaust air must be directly ducted outdoors and never into the ceiling space, roof cavity, or sub-floor area
Enclosed Bathrooms: If a bathroom does not have a window or the openable area is less than 5% of the floor area, a mechanical exhaust system must run continuously or be linked to a 10-minute timer.

Luckily, at Electricians Sydney by Alliance, all of our electricians are fully qualified and fully insured to take on any exhaust fan installation that you may need. We are up-to-date on all NCC requirements and electrical work legislation.

What Rooms Need an Exhaust Fan

Any enclosed room in your home with high levels of humidity, heat, and moisture requires proper ventilation. Placement, size of fans, and extraction rates will vary from room to room depending on their needs.

Bathroom Exhaust Fans

Bathroom exhaust fans are essential for discharging steam and moisture from the space. This reduces the risk of harmful mould growth and damage to paint, drywall, and wood in the room’s foundations. An exhaust fan can also filter out unpleasant odours and harmful chemicals that are present in the air.

NCC Requirements: The NCC requires mechanical ventilation (exhaust fans) for bathrooms without a window. Motion sensors and timers installed with these units need to remain on for at least 10 minutes after you exit the room.

Fan Type Recommendation: 3-in-1 unit or Ceiling-mounted unit

Kitchen Exhaust Fans

Kitchen exhaust fans are essential for extracting cooking fumes, smoke, grease, and steam produced by your stove and oven. Not providing an exhaust fan or rangehood for your kitchen can lead to building up grease, smoke damage, staining, mould growth, and structural deterioration.

NCC Requirements: A minimum extraction rate of 40 L/s for mechanical ventilation in kitchens is required, as the level of moisture and airborne contaminants is higher in the space.

Fan Type Recommendation: Ceiling-mounted or Wall-mounted units

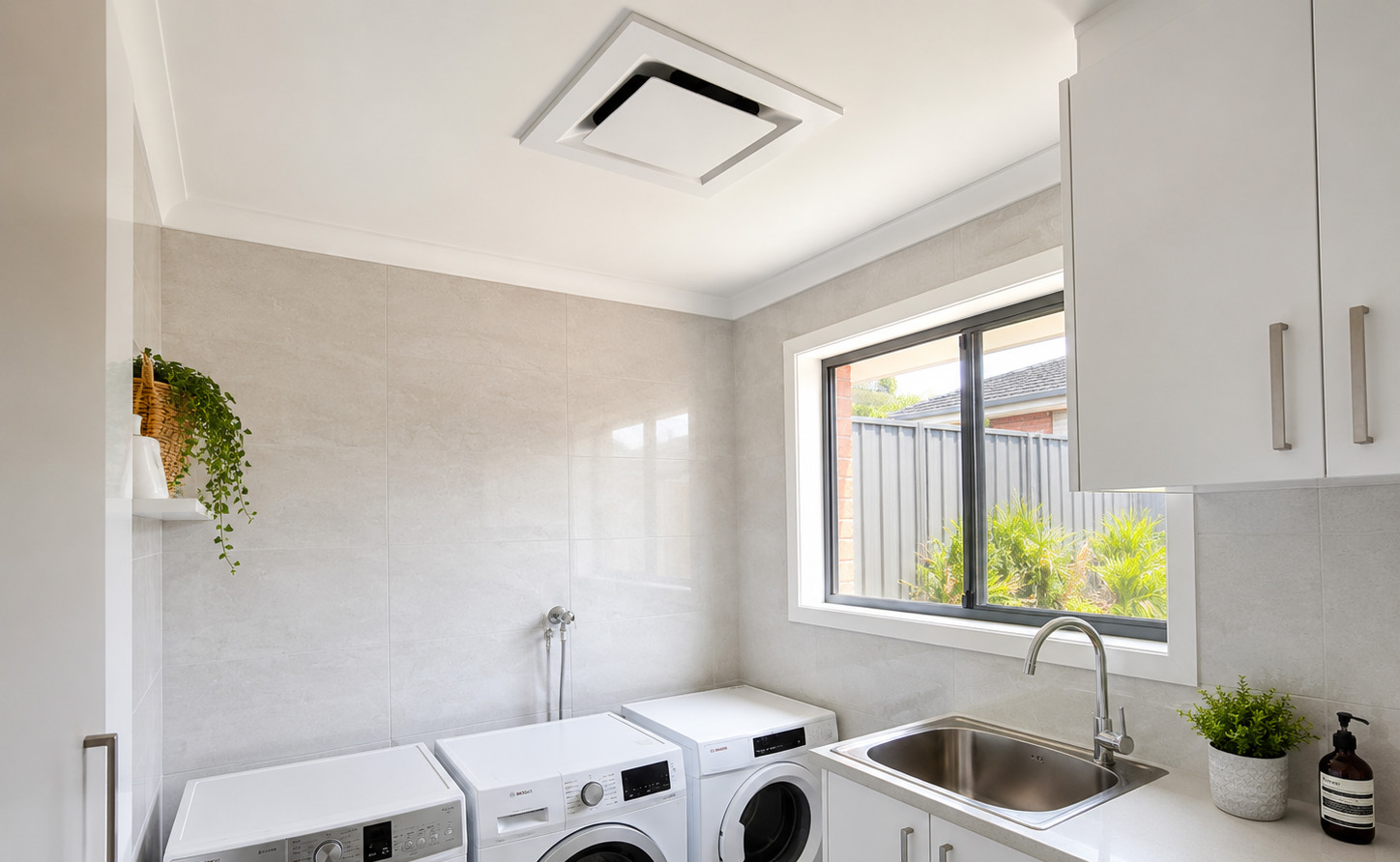

Laundry Room Ventilation

Laundry room equipment, such as washing machines and dryers, produces a substantial amount of heat and moisture when used. This requires an exhaust fan to reduce condensation on windows, walls, and floors. Some bleaches, laundry liquids, and cleaning equipment stored in the space can release contaminants into the air. Exhaust fans help filter out these pollutants.

NCC Requirements: The airflow capacity for a domestic laundry is 40 L/s and requires 6 to 15 air changes per hour without a dryer and 15 to 25 air changes per hour with a dryer.

Fan Type Recommendation: Inline ducted fans, wall-mounted, or ceiling-mounted units.

To improve airflow in your home, have [brand name] handle your exhaust fan installation. We handle the entire process, from site inspection to installation and fan repair. We have every stage covered.

Give us a call at (02) 8331 6785 or book an appointment online.

What our local community
is saying about our team

Great job by an excellent team. Big thanks to BJ, Ivan, Shannon and Zac. And thanks too for Shazim's excellent advice at the beginning of the process.

Great experience using Alliance Climate Control, Jake found the problem with our system quickly, explained the repair and carried out the service on the spot.

Excellent service from start to finish. The team at Alliance are professional, organised and responsive. We had a complex install, Jonathan and Aiden did a fantastic job, their attention to detail is amazing. We will be calling Alliance for all our future needs.

Technicians and electrician are all professional and are willing to communicate. We are happy with their services. Highly recommend.

Liam and James from Alliance were amazing! They were on time, explained both our options and what they'd done in great detail. I felt confident that I was getting exactly the service I needed and that it had been carried out to a very high standard. I'd happily book them in again next time, and would recommend the service to others.

Chris & Harley were so exceptional. They arrived on time, kept me informed throughout the electrical works and ensured they left the property clean at the end. Excellent work and very friendly.

Chris Divis did a marvellous job checking the electrics of my house. He spotted a number of items, power points etc, that needed to be replaced and fixed them with a professional approach which I really liked. A great tradesman to have on your team. Thank you.

Schedule an appointment with one of our electrician today.

Replacement vs. New Exhaust Fan Installation

There are two types of exhaust fan installation jobs: replacement of an old fitting or installing a whole new unit. Occasionally, an old unit will breakdown and you’ll call us to replace it; other times, you want to install a whole new unit into a room without one. The complexity and procedures for each of these jobs will vary.

Features	Replacement	New
When is it necessary?	If your exhaust fan displays any of these signs: Weak suction Lingering moisture for more than 15-20 minutes Excessive rattling, loud grinding or a sudden increase in noise Exceeded its lifespan Burning smell	When a high-humidity room, like a bathroom or kitchen, doesn’t have the appropriate ventilation requirements outlined by the NCC.
Space Inspection & Placement	Replacing an existing exhaust fan will require a site inspection, but it tends to be easier because there is already a dedicated site and ducting.	Site inspection will take more time and may require cutting a new hole, adjusting or adding ducting, or updating wiring. If there is existing ducting, the job may take less time, but every home is different.
Time	45 minutes to 2 hrs approximately	4 to 8 Hours or the entire day
Demolition	No major structural demolition	No major demolition, but will require cutting plasterboard and ducting work
Pricing	$150-$250+	$250-$400+

Regardless of whether you want an exhaust fan replacement or a new unit installed, Electricians Sydney By Alliance has our installation process down to the wire, for ease and efficiency:

Space Inspection: We always start with a space inspection to ensure your exhaust fan is appropriate for the space, meets all NCC ventilation requirements, and has the right ducting pipes.
Safety & Wire Check: Next, we’ll inspect your electrical system to ensure all wiring circuits and power supplies can handle the load of your new installation.
Quote: Once all of our inspections are complete, we will provide you with a written quote and carefully explain the full installation process. If you don’t sign off, we won’t start work.
Mount & Install: Once we’ve identified the correct circuit pathway and ducting necessary, we will assemble and connect your unit to the chosen placement.
Test: After everything is installed, we’ll test your new exhaust fan and make sure it’s in working order.

At Electricians Sydney By Alliance, we have a 100% service satisfaction guarantee and a lifetime workmanship warranty. That means if you’re not happy, we’re not happy.

Professional Exhaust Fan Installation in Sydney

When ventilation meets electrical work, rely on Electricians Sydney by Alliance. Backed by 15 years with Alliance Climate Control, our team of expert electricians is committed to providing you with safe and efficient exhaust fan installations.

Whether it’s your laundry, your kitchen, or the dunny, we’re equipped to tackle any type of exhaust fan installation you require. With fast response times and lifetime workmanship warranties, you know that with ESBA, you’ll get quality and efficient service.

Keep your space fresh by calling Electricians Sydney By Alliance on (02) 8331 6785 or book online.
